Pay-Out Reels

Pay-Out Reels

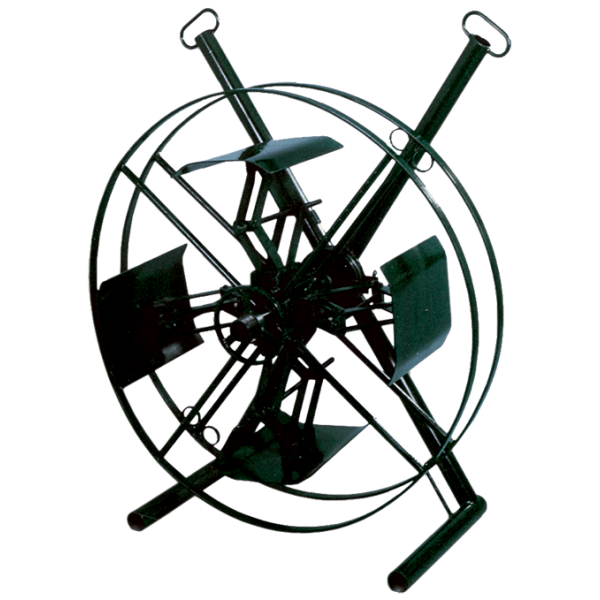

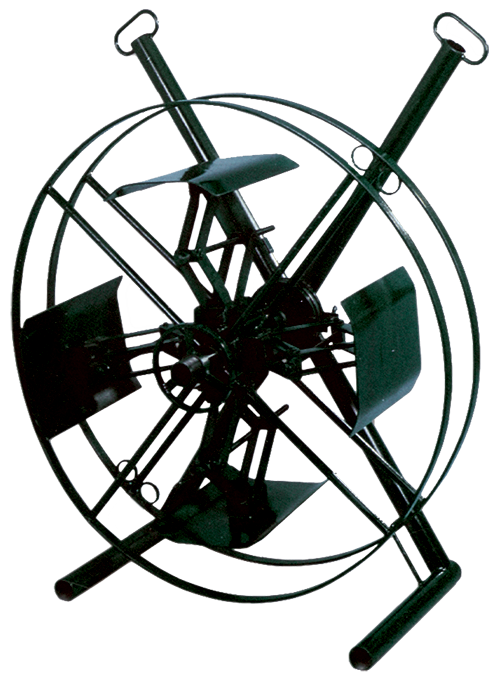

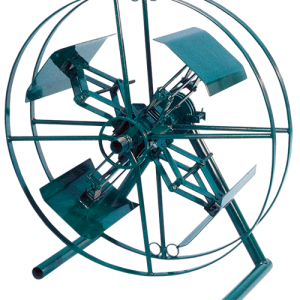

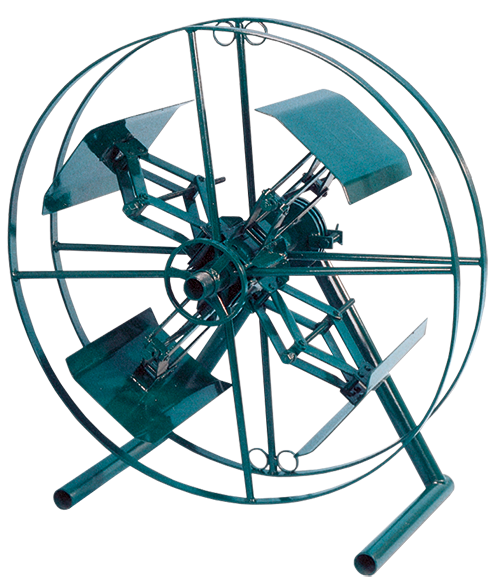

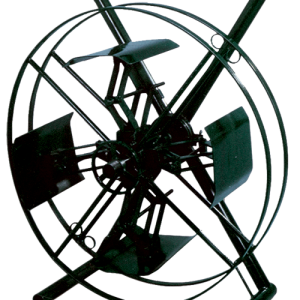

900 Series

Fully adjustable, all purpose device for us on trucks or as a portable pay-out reel.

• Works on many different coil sizes
• Standard grease fitting provides full lubrication
• Adjustable brake maintains line tension

Diameter: 14" (minimum) -32" (maximum)

Width: 6" (minimum) - 11" (maximum)



Part#           Height       Width      Depth       Weight

900                 40"              37"           19"          145lb.

900S              35"              32"           19"             95lb.

900X              45"              37"           19"           165lb.
